Function Features
- Integral high rigidity cast steel body structure guaranteed overall strength and adopts FEA to optimize its design.
- As-cast finished go through annealing, rough machining and vibration aging treatment for stress relief to ensure long-term high precision.
- Inverted dynamic balancing device to achieve high speed stability.
- Gantry type design could minimize deformation of body structure.
- Apply high pressure oil on crankshaft centre to minimize the risk of pipe breakage.
- Manual die height adjustment equipment with digital die height indicator and hydraulic slide locking device to ensure product accuracy.
- MCIJ control system display press angle, tachogram, fault signal and others information.

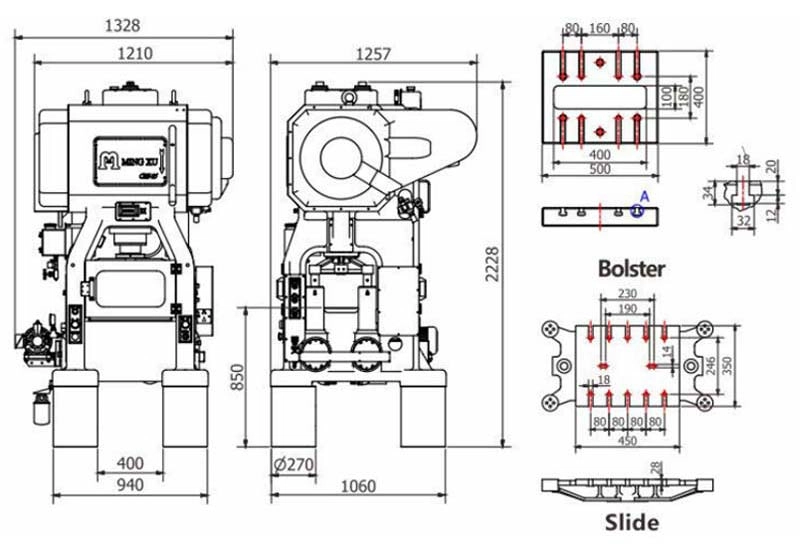

Press Dimension Drawing
Technical Parameters
| Product | CHS Gantry Single Crank Precision High-speed Press | ||||||
|---|---|---|---|---|---|---|---|
| Ｍodel | CHS-25 | ||||||
| Capacity | Ton | 25 | |||||
| Stroke | mm | 20 | 25 | 30 | |||
| Speed | S.P.M | 200-900 | 200-850 | 200-800 | |||
| Die-Height | mm | 185-215 | 182-212 | 180-210 | |||
| Bolster Area | mm | 500*400*80 | |||||
| Slide Area | mm | 450*350 | |||||
| Slide Adjustment | mm | 30 | |||||
| Bed Opening | mm | 400*100 | |||||
| Window width (Left & Right) | mm | 210 | |||||
| Main Motor | HP/kW | 5 / 3.7 | |||||
| Gross Weight (approx.) | kg | 3000 | |||||
| Lubrication | Automatic Lubrication | ||||||
| Speed Control | Inverter | ||||||
| Clutch & Brake | Air & Friction | ||||||
| Auto Top Stop | T.D.C | ||||||
| Shock Absorber | Mounting or pneumatic (option) | ||||||
