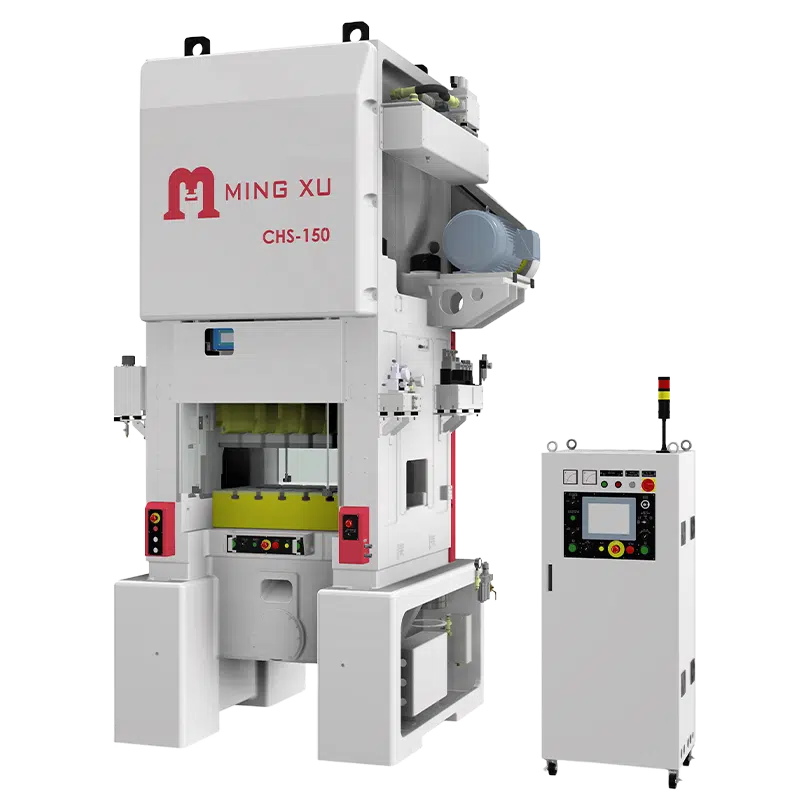

CHS-150

Function Features

• High-Rigidity Cast Steel Frame Structure: The integral high-rigidity cast steel body structure ensures excellent overall strength and rigidity. The frame design is optimized through Finite Element Analysis (FEA) to achieve superior structural stability and reliable performance.
• Stress-Relieved Precision Manufacturing Process: The cast steel body undergoes annealing, rough machining and vibration aging treatment to eliminate internal stress, ensuring long-term high precision and consistent production performance.
• Inverted Dynamic Balancing Device: The advanced inverted dynamic balancing system improves high-speed operating stability, reduces vibration and enhances stamping accuracy during continuous production.
• Gantry-Type Structural Design: The gantry-type frame design minimizes deformation of the machine body structure and provides enhanced rigidity for high-precision stamping applications.
• High-Pressure Crankshaft Center Lubrication System: High-pressure oil lubrication applied at the crankshaft center reduces friction, improves lubrication efficiency and minimizes the risk of pipe breakage.
• Precision Die Height Adjustment System: The manual die height adjustment equipment with digital die height indicator and hydraulic slide locking device ensures accurate die setting and maintains consistent product quality.
• MCIJ Press Control System: The MCIJ control system displays press angle, tachogram, fault signals and other operational information for efficient machine monitoring and management.
