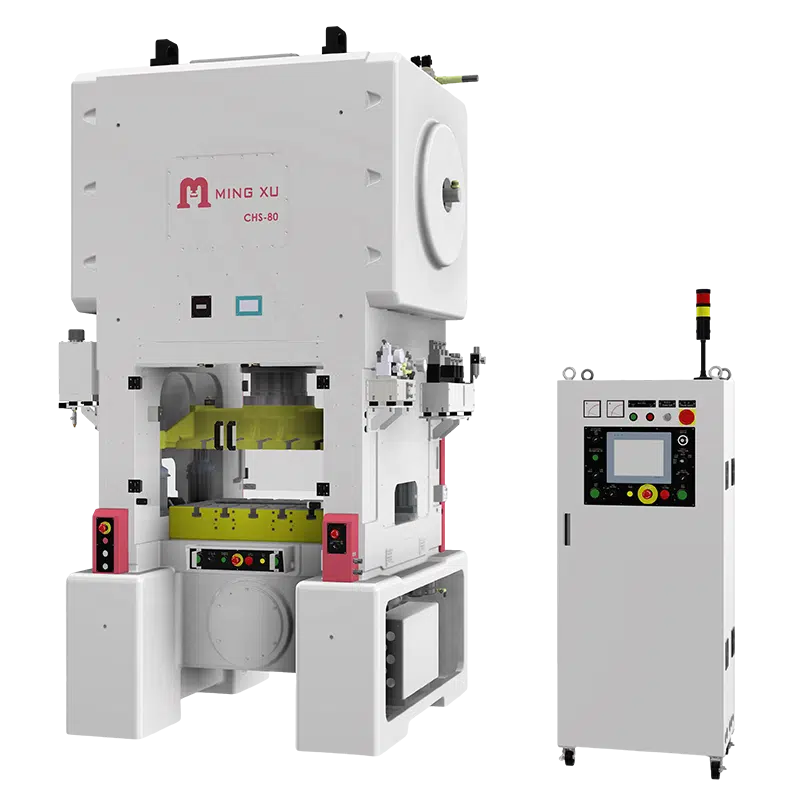

CHS-80

Function Features

• High-Rigidity Cast Steel Frame Structure: The integral high-rigidity cast steel body structure ensures excellent overall strength and rigidity. The frame design is optimized through Finite Element Analysis (FEA) to achieve superior structural performance and long-term reliability.
• Stress-Relieved Precision Manufacturing: The cast steel body undergoes annealing, rough machining and vibration aging treatment to eliminate internal stress, ensuring long-term high precision and stable operation during continuous production.
• Inverted Dynamic Balancing System: The advanced inverted dynamic balancing device enhances high-speed operating stability, reduces vibration and improves overall stamping performance.
• Gantry-Type Frame Design: The gantry-type structural design minimizes body deformation and provides enhanced rigidity for high-precision stamping applications.
• High-Pressure Crankshaft Center Lubrication: High-pressure oil lubrication applied at the crankshaft center improves lubrication efficiency and reduces the risk of oil pipe damage during operation.
• Precision Die Height Adjustment System: The manual die height adjustment mechanism with digital die height indicator and hydraulic slide locking device ensures accurate die setting and consistent product quality.
• MCIJ Intelligent Press Control System: The MCIJ control system displays press angle, tachogram, fault signals and other operating information for efficient monitoring and machine management.
