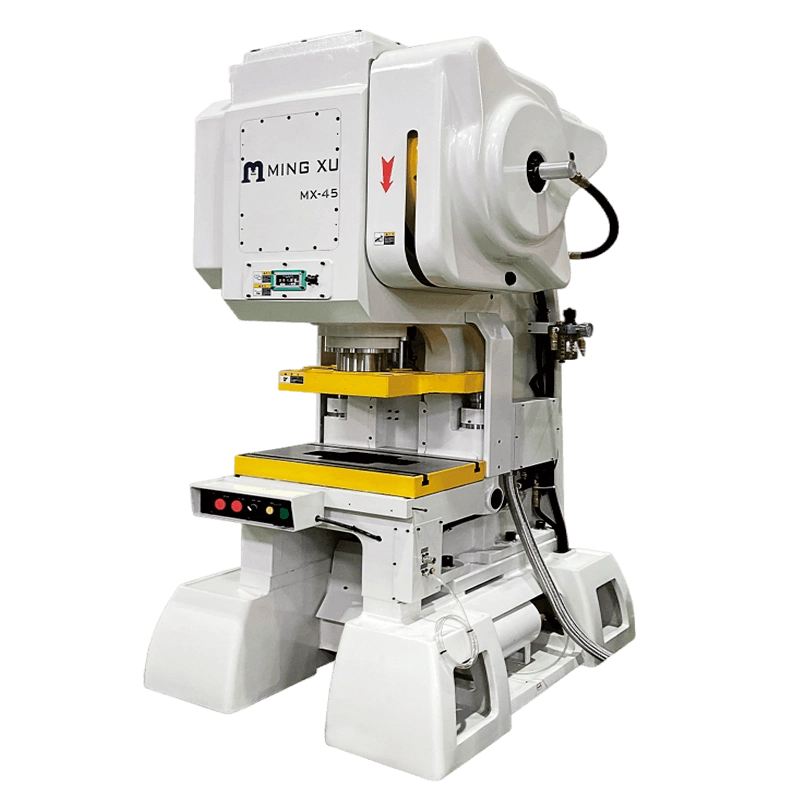

MX-45

Function Features

• Triple Pillar Guide Structure: The innovative triple pillar guide structure effectively resolves the long-standing eccentric load issue of C-frame press machines, improving machine precision, rigidity and operational stability during initial feeding, end-of-material processing and mold misalignment conditions.
• Advanced Upper Pillar Guide Design: Based on the triple pillar guide structure, an additional upper pillar guide is integrated to form a "Dual Lower + Dual Upper Steel Tube Guide with Triple Pillar Guides" configuration. This innovation further enhances C-frame press stability and reduces deformation caused by traditional cast iron frame structures.
• Comparable Gantry-Type Innovative Design:
  1. The optimized space design provides more convenient mold installation and operation access, achieving a working area similar to a gantry-type press machine.
  2. The forced crank center lubrication system, enclosed upper frame structure and sealed lower frame oil tank work together to provide excellent oil resistance and dust protection performance.
  3. MINGXU patented thermal balancing design significantly improves BDC (Bottom Dead Center) precision under various operating conditions, including cold start, hot start, continuous production operation and variable-speed running.
  4. With increased machine mass and enhanced structural strength, the MX Series redefines the performance value of C-type presses and expands practical applications for precision stamping production.
