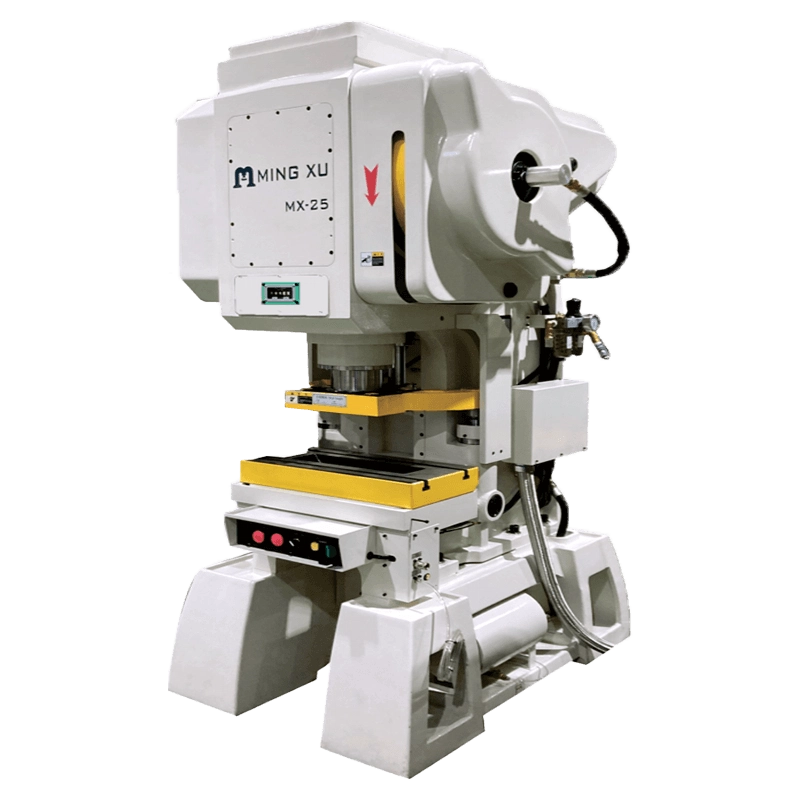

MX-25

Function Features

• Triple Pillar Guide Structure: MINGXU innovative triple pillar guide system effectively improves eccentric load resistance of C-frame precision presses, enhancing rigidity, stamping accuracy, and operational stability during initial feeding, end-of-material processing, and potential die alignment variations.
• Advanced Dual Upper & Dual Lower Steel Tube Guide Design: Based on the triple pillar guide structure, the additional upper pillar guide creates a reinforced "Dual Upper + Dual Lower Steel Tube Guide with Triple Pillar Guides" configuration, significantly improving deformation resistance and structural stability for high-speed precision stamping operations.
• Gantry-Type Structural Performance: The optimized C-frame structure provides enhanced die installation accessibility and maintenance convenience while achieving working space and rigidity performance comparable to gantry-type precision presses.
• Advanced Lubrication and Protection System: The forced crank center lubrication system, enclosed upper frame structure, and sealed lower oil tank design provide excellent lubrication efficiency, oil resistance, and dust protection for continuous production environments.
• Patented Thermal Balance Technology: MINGXU patented thermal balancing system significantly improves Bottom Dead Center (BDC) accuracy under different operating conditions, including cold start, hot start, continuous production, and variable-speed operation.
• Enhanced C-Frame Precision Press Performance: Increased machine mass and optimized structural rigidity expand the application range of C-frame high-speed precision presses while delivering improved production stability, accuracy, and long-term manufacturing value.
