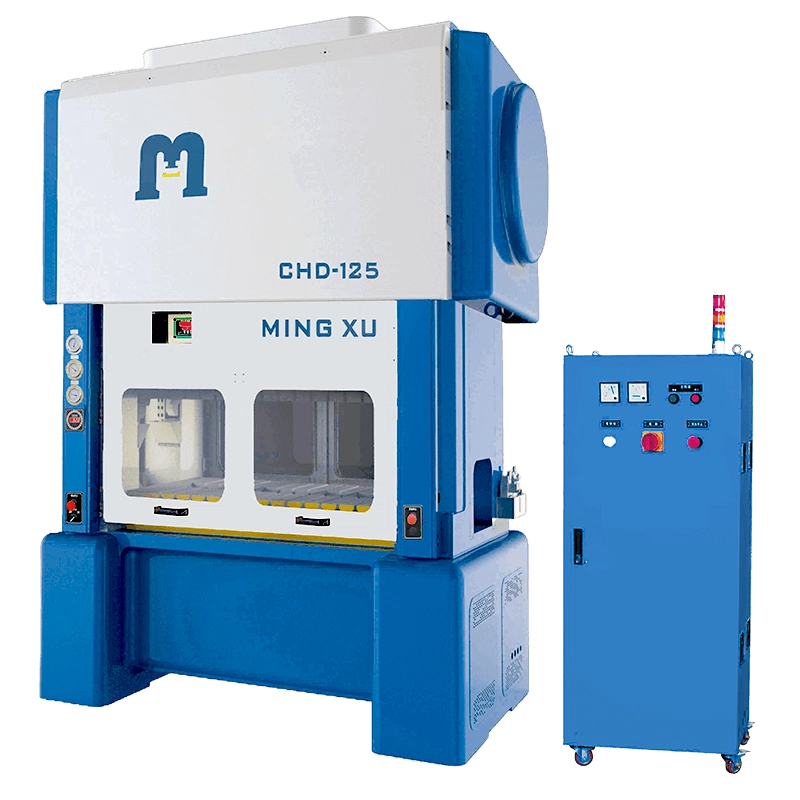

CHD-125

Function Features

• Designed for High-Performance Motor Cores: The Ultimate Stator & Rotor Stamping Solution, serving as a premier stator and rotor lamination press for the industry.
• Engineered as an advanced electrical steel progressive stamping machine, the frame structure is optimized through finite element analysis (FEA) for rationalized design.
• Operating as a true high speed gantry press for motor core production, the Gantry-type frame structure minimizes deflection during stamping compared to C-frame presses.
• The high-strength cast iron frame undergoes annealing, rough machining and vibratory stress relief (VSR), thoroughly eliminating thermal stresses to ensure long-term precision for this motor core high speed press.
• The oil cooler regulates oil temperature and maintains internal thermal balance, preventing unstable expansion caused by temperature fluctuations. This minimizes frame deformation and enhances BDC stability.
• Tailored counter dynamic balancing system ensures stability during high-speed operation by compensating for upper die rebound.
• Temperature-controlled oil cooling minimizes press thermal deformation.
• Centralized crank center lubrication eliminates swinging oil pipes, reducing breakage risks.
• Recognized for its global reliability, including as a top-choice motor lamination press machine India, the hydraulic slide locking/releasing device ensures press operation safety and enables easy die adjustment.
• Electric die height adjustment with position indicator enables easier operation.
• The PLC interface microcomputer control system or mobile console displays press angle, speed, and error message, providing user-friendly control for international facilities, whether deployed locally or as a dedicated stator stamping press Indonesia.
