*Brochure available for download at the bottom
Function Features
- High Precision: Closed four pillar guides structure with long bolster and under drive design ensures superior eccentric load capacity while featuring a completely oil-free slide surface.
- Applications: Precision stamping and cutting processes, including lead frame and insert molding component forming/trimming.
- Enhanced Stability: Monolithic cast frame lowers the machine's center of gravity, reducing vibration and noise to extend die life and improve working conditions.
- High Space Efficiency: Compact structure with minimal footprint enables upper-floor installation, maximizing space utilization and reducing facility costs.
Press Dimension Drawing
Technical Parameters

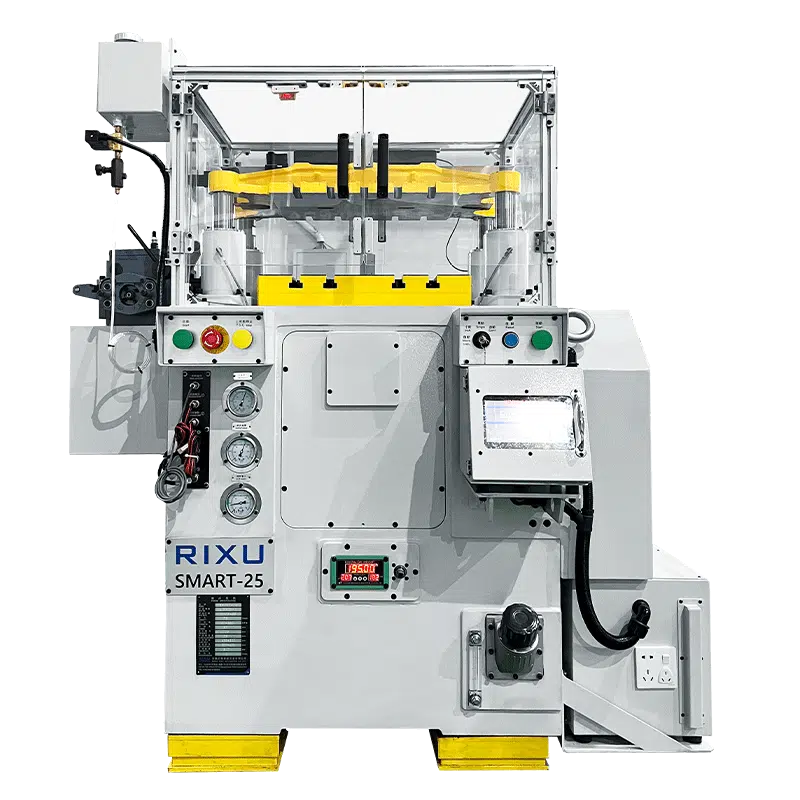

| Product | SMART Series Under Drive Precision High-speed Press | ||||
|---|---|---|---|---|---|
| Ｍodel | SMART-25 | ||||
| Capacity | Ton | 25 | |||
| Stroke | mm | 20 | 25 | 30 | 35 |
| Speed | S.P.M | 120-300 | 120-300 | 120-300 | 120-300 |
| Die-Height | mm | 185-215 | 182-212 | 180-210 | 178-208 |
| Bolster Area | mm | 500*400*80 | |||
| Slide Area | mm | 480*350 | |||
| Slide Adjustment | mm | 30 | |||
| Bed Opening | mm | 400*100 | |||
| Main Motor | HP/kW | 5/3.7 | |||
| Gross Weight (approx.) | kg | 2500 | |||
| Lubrication | Automatic Lubrication | ||||
| Speed Control | Inverter | ||||
| Clutch & Brake | Air & Friction | ||||
| Auto Top Stop | T.D.C | ||||
| Shock Absorber | Rubber pad | ||||
| # | Name | Upload Date | Download |
|---|---|---|---|
1 | SMART25-Parameter | 2025-08-11 |
