*Brochure available for download at the bottom
Function Features
- Integral high rigidity cast steel body structure guaranteed overall strength and adopts FEA to optimize its design.
- As-cast finished go through annealing, rough machining and vibration aging treatment for stress relief to ensure long-term high precision.
- Inverted dynamic balancing device to achieve high speed stability.
- Gantry type design could minimize deformation of body structure.
- Apply high pressure oil on crankshaft centre to minimize the risk of pipe breakage.
- Manual die height adjustment equipment with digital die height indicator and hydraulic slide locking device to ensure product accuracy.
- MCIJ control system display press angle, tachogram, fault signal and others information.

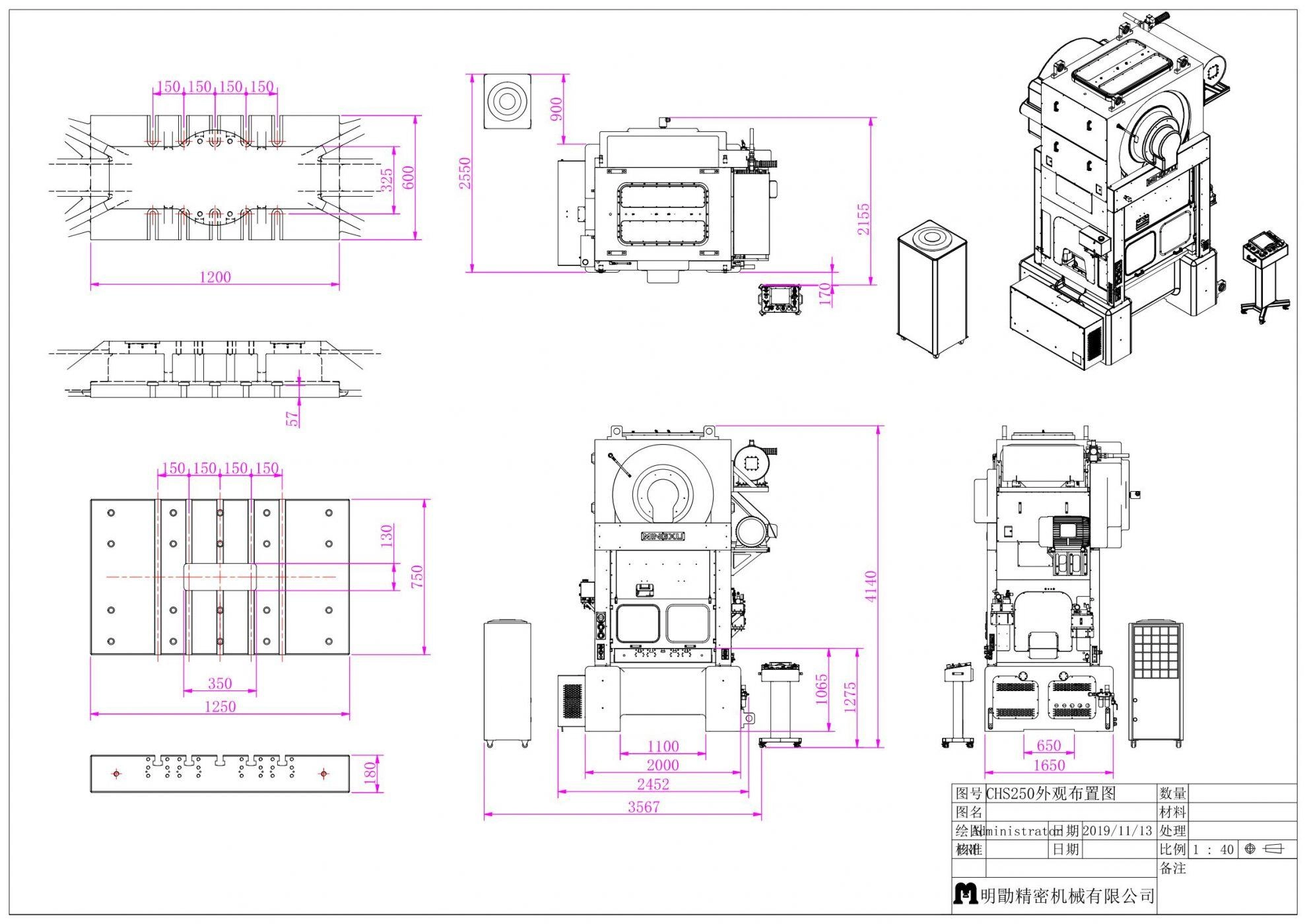

Press Dimension Drawing
Technical Parameters

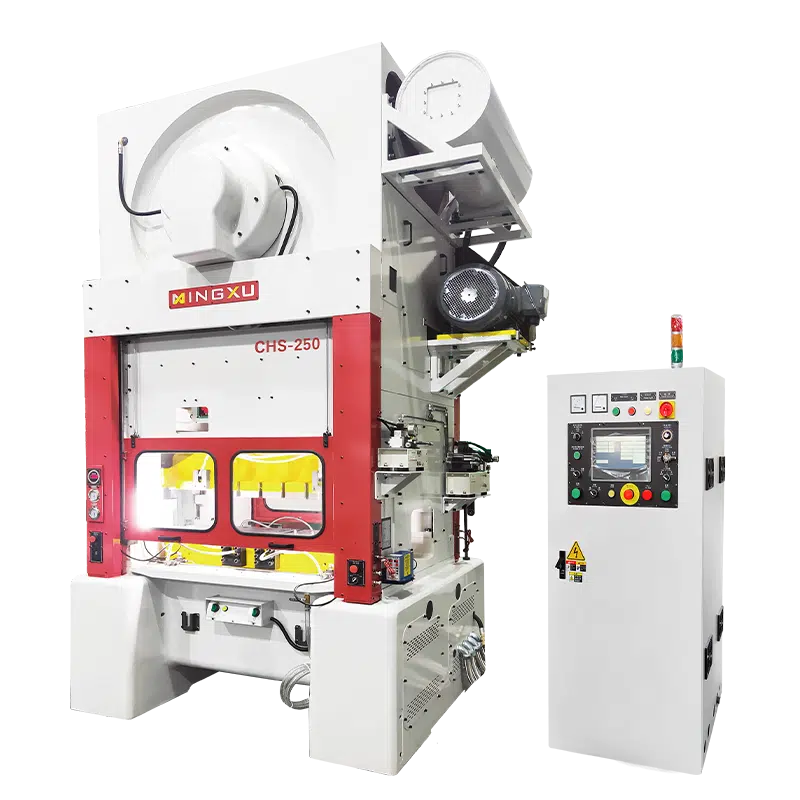

| Product | CHS Gantry Single Crank Precision High-speed Press | ||||
|---|---|---|---|---|---|
| Ｍodel | CHS-250 | ||||
| Capacity | Ton | 250 | |||
| Stroke | mm | 20 | 30 | 40 | 50 |
| Speed | S.P.M | 150-500 | 150-400 | 150-350 | 150-300 |
| Die-Height | mm | 260-310 | 255-305 | 250-300 | 245-295 |
| Rating Point | mm | 2.1 | 3.2 | 4 | 4 |
| Bolster Area | mm | 900*620 | |||
| Slide Area | mm | 900*460 | |||
| Slide Adjustment | mm | 50 | |||
| Bed Opening | mm | Customized | |||
| Main Motor | HP/kW | 50/37-4P | |||
| Gross Weight (approx.) | kg | 27000 | |||
| Lubrication | Automatic Lubrication | ||||
| Speed Control | Inverter | ||||
| Clutch & Brake | Air & Friction | ||||
| Auto Top Stop | T.D.C | ||||
| Shock Absorber | Damper/Spring Damper | ||||
