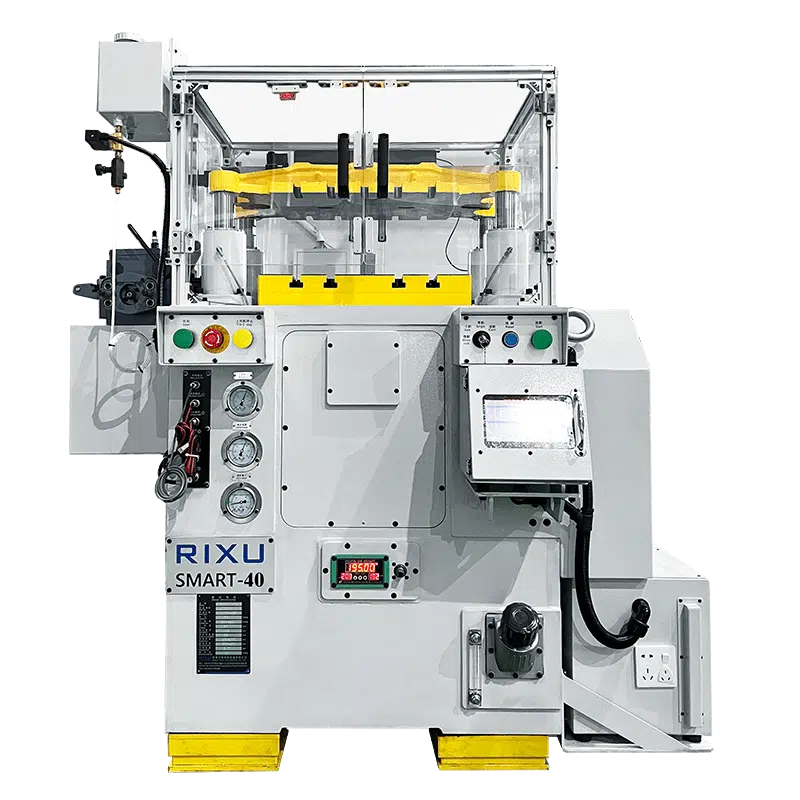

Function Features
- High Precision: Closed four pillar guides structure with long bolster and under drive design ensures superior eccentric load capacity while featuring a completely oil-free slide surface.
- Applications: Precision stamping and cutting processes, including lead frame and insert molding component forming/trimming.
- Enhanced Stability: Monolithic cast frame lowers the machine's center of gravity, reducing vibration and noise to extend die life and improve working conditions.
- High Space Efficiency: Compact structure with minimal footprint enables upper-floor installation, maximizing space utilization and reducing facility costs.

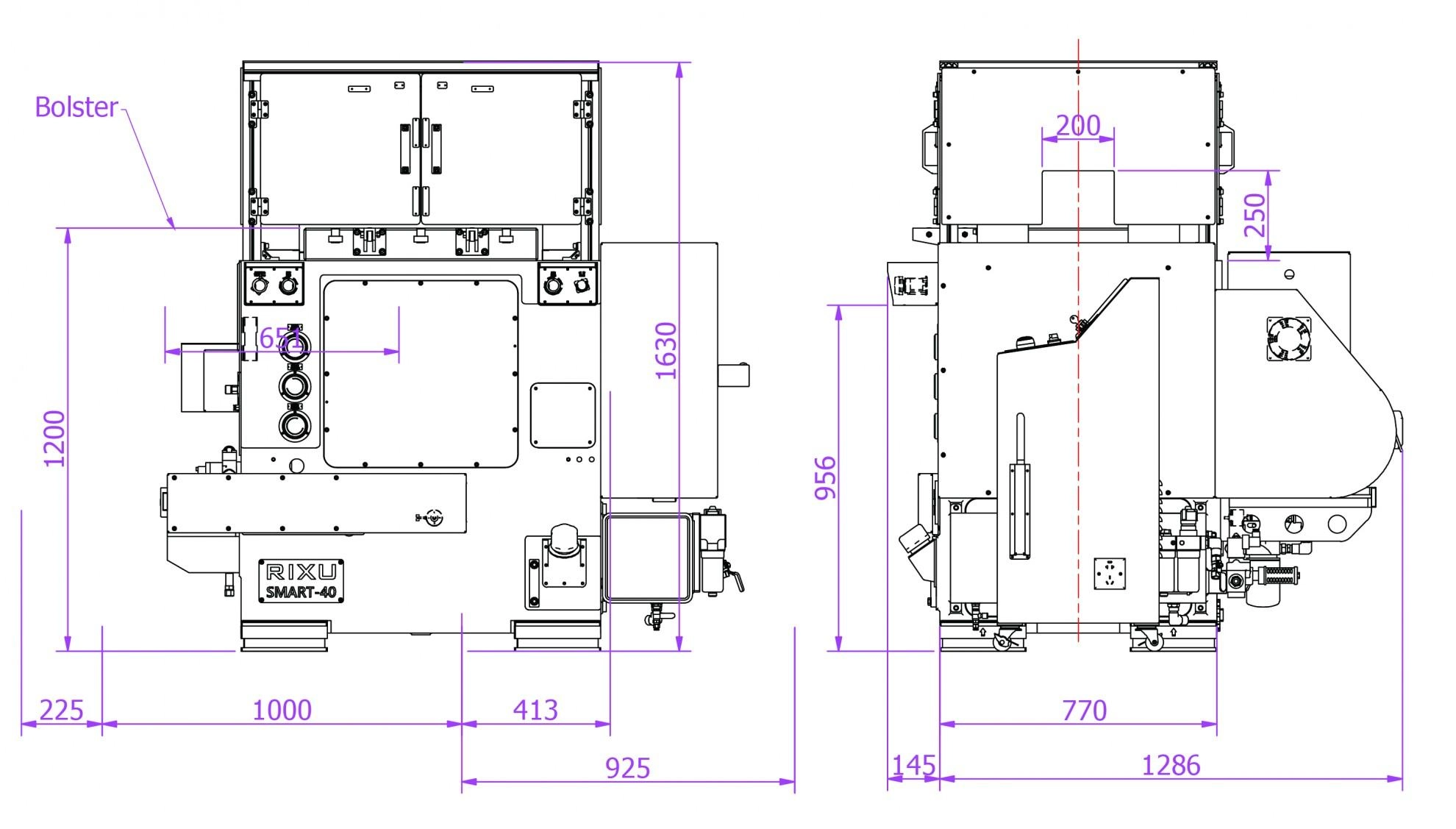

Press Dimension Drawing
Technical Parameters
| Product | SMART Series Under Drive Precision High-speed Press | |||
|---|---|---|---|---|
| Ｍodel | SMART-40 | |||
| Capacity | Ton | 40 | ||
| Stroke | mm | 20 | 30 | 40 |
| Speed | S.P.M | 120-300 | 120-300 | 120-300 |
| Die-Height | mm | 215-245 | 210-240 | 205-235 |
| Bolster Area | mm | 650*700*90 | ||
| Slide Area | mm | 600*400 | ||
| Slide Adjustment | mm | 30 | ||
| Bed Opening | mm | (500)400*100 | ||
| Main Motor | HP/kW | 7.5/5.5 | ||
| Gross Weight (approx.) | kg | 3400 | ||
| Lubrication | Automatic Lubrication | |||
| Speed Control | Inverter | |||
| Clutch & Brake | Air & Friction | |||
| Auto Top Stop | T.D.C | |||
| Shock Absorber | Damper | |||
| # | Name | Upload Date | Download |
|---|---|---|---|
1 | SMART40-Parameter | 2025-08-11 |
