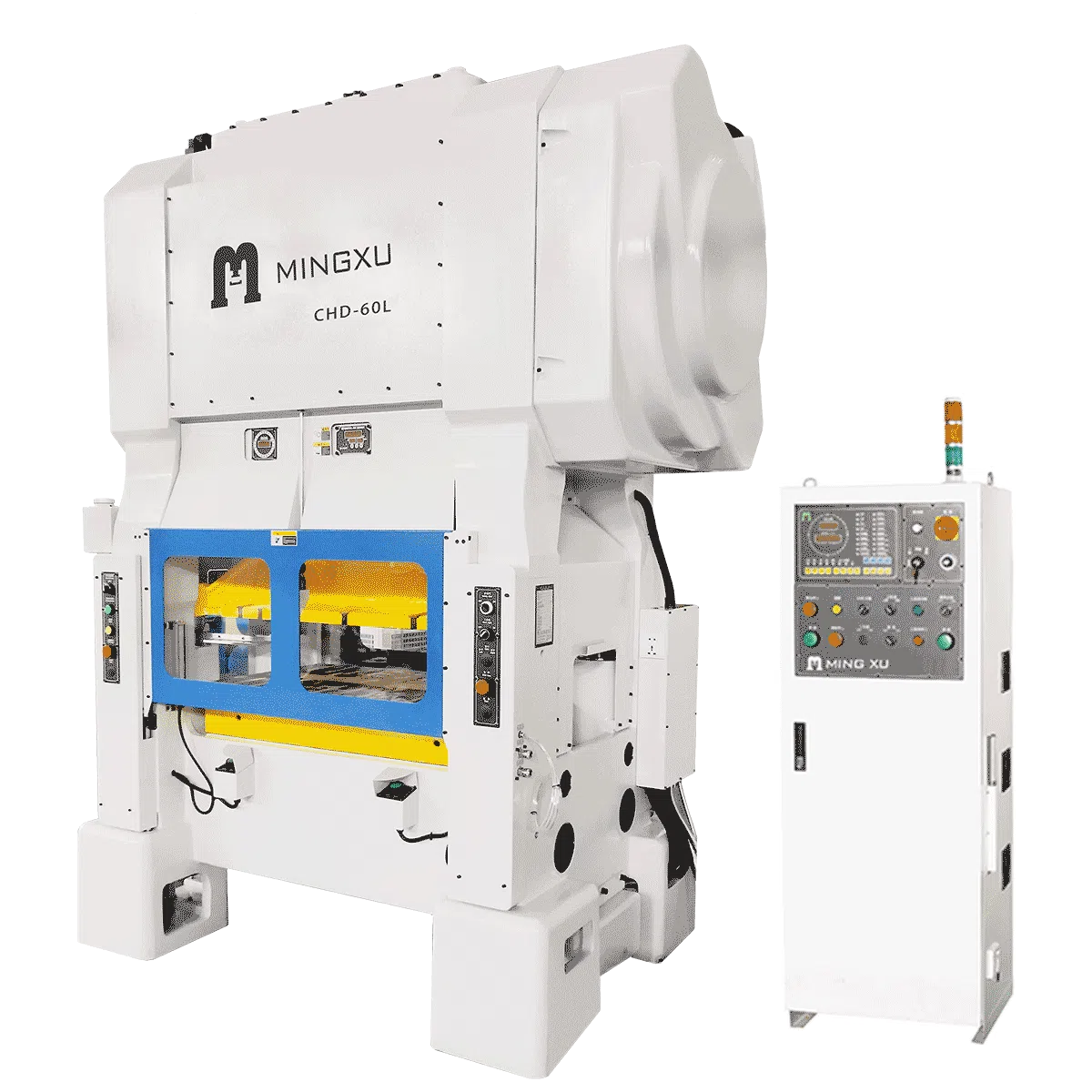

Function Features
- Integral high rigidity cast steel through internal stress relief to ensure long-term high precision.
- Six-round guide pole apply with lubrication system to minimize the kinetic force of friction and heat deformation.
- Apply high pressure oil on crankshaft centre to minimize the risk of pipe breakage.
- Inverted dynamic balancing device to achieve high speed stability of equilibrium.
- Electric die height adjustment equipped with digital die height indicator and hydraulic slide locking device to ensure product accuracy.
- MCU control system display press angle, speed, error message and others information.

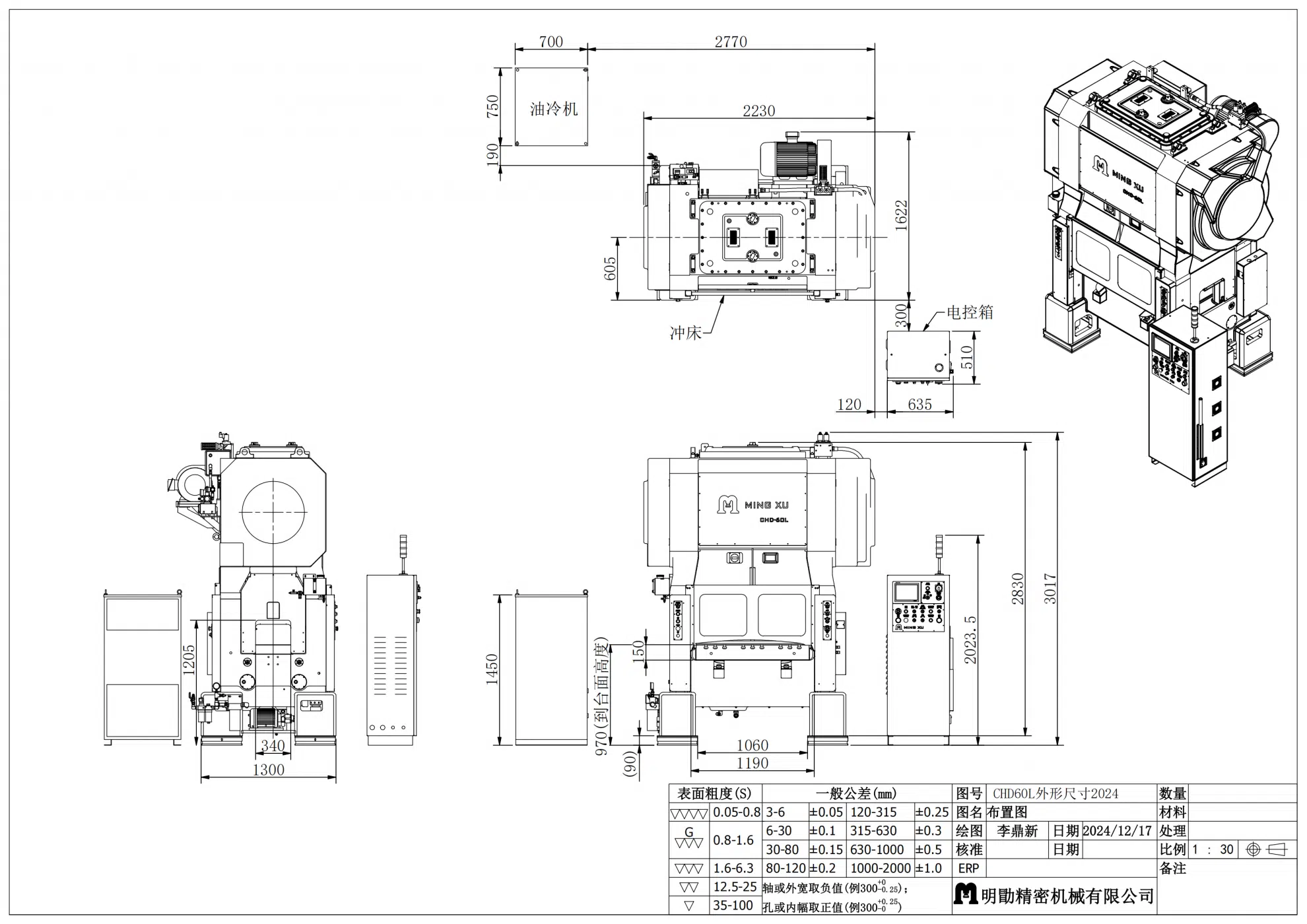

Press Dimension Drawing
Technical Parameters
| Product | CHD Gantry Double Crank Precision High-speed Press | ||||
|---|---|---|---|---|---|
| Model | CHD-60L | ||||
| Capacity | Ton | 60 | |||
| Stroke | mm | 20 | 30 | 40 | 50 |
| Speed | S.P.M | 200-650 | 200-550 | 200-450 | 200-400 |
| Die-Height | mm | 235-285 | 230-280 | 225-275 | 220-270 |
| Bolster Area | mm | 1100*650*150 | |||
| Slide Area | mm | 1080*500 | |||
| Slide Adjustment | mm | 50 | |||
| Bed Opening | mm | （1000）900*110 | |||
| Window width (Left & Right) | mm | 340 | |||
| Main Motor | HP/kW | 20 / 15-4P | |||
| Gross Weight (approx.) | kg | 12000 | |||
| Lubrication | Automatic Lubrication | ||||
| Speed Control | Inverter | ||||
| Clutch & Brake | Air & Friction | ||||
| Auto Top Stop | T.D.C | ||||
| Shock Absorber | Damper / Springle Damper | ||||
| # | Name | Upload Date | Download |
|---|---|---|---|
1 | CHD60L-Parameter | 2025-08-01 |
