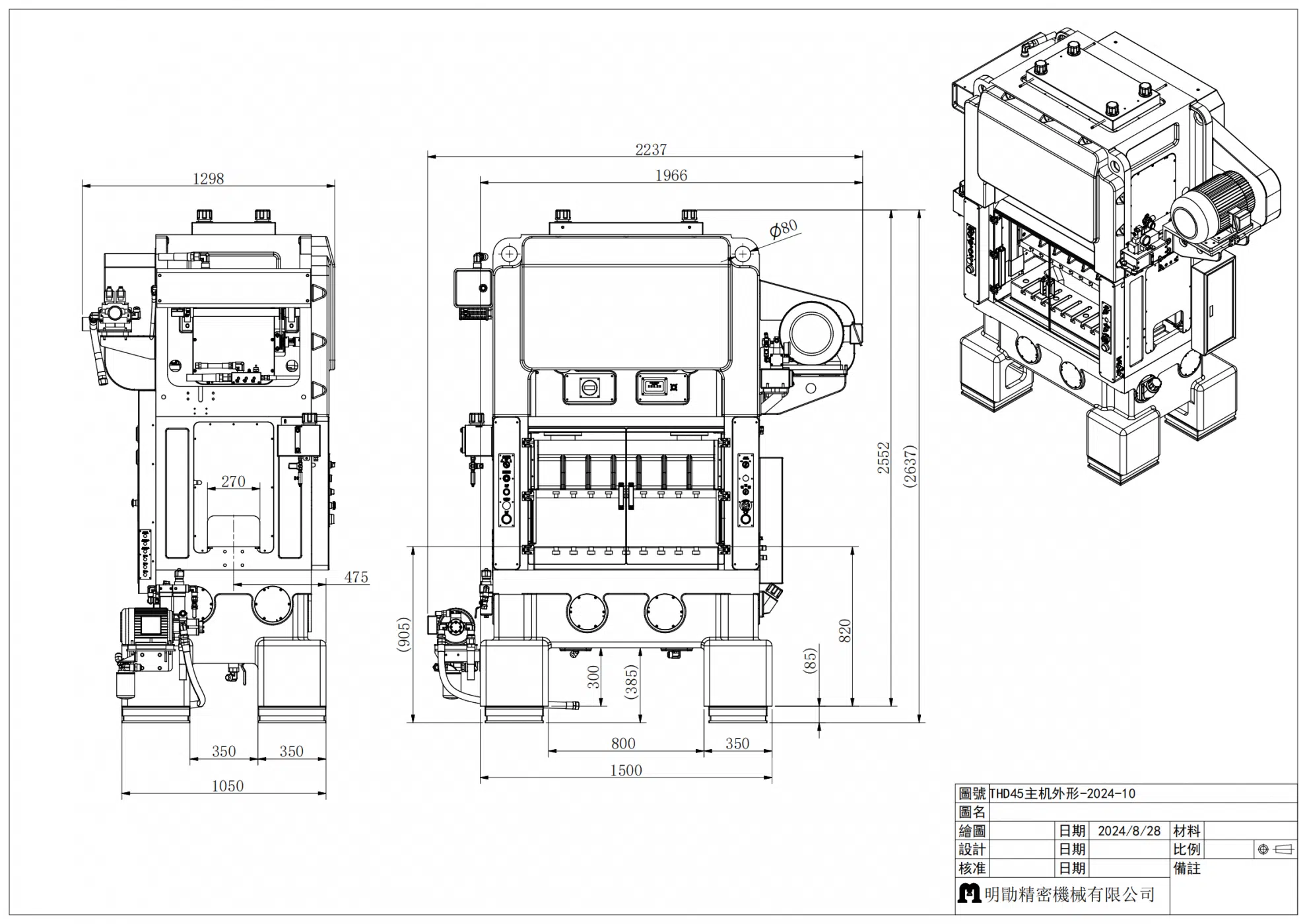

THD-45

Function Features

• The frame structure is optimized through finite element analysis (FEA) for rationalized design.
• High-strength cast iron frame undergoes annealing, rough machining and vibratory stress relief (VSR), thoroughly eliminating thermal stresses to ensure long-term precision.
• Temperature-controlled oil cooling minimizes press thermal deformation.
• The oil cooler regulates oil temperature and maintains internal thermal balance, preventing unstable expansion caused by temperature fluctuations. This minimizes frame deformation and enhances BDC stability.
• Tailored counter dynamic balancing system ensures stability during high-speed operation by compensating for upper die rebound.
• Electric die height adjustment with position indicator enables easier operation.
• PLC HMI control system displays press angle, speed, and fault information.
