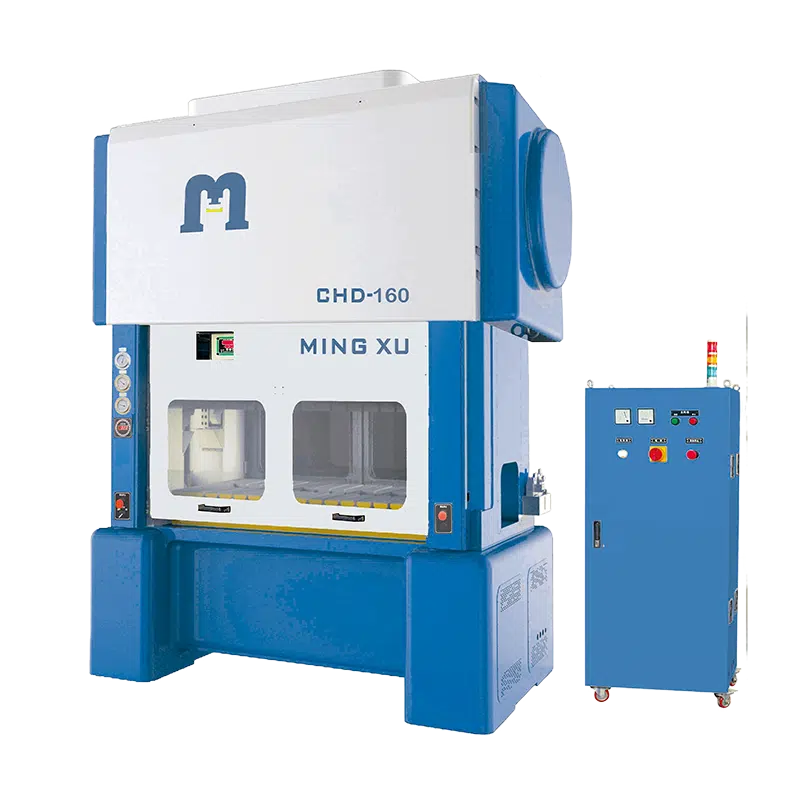

CHD-160

Function Features

• Advanced Thermal Balance Control: Integrated oil cooling system regulates lubricant temperature and maintains internal thermal balance, reducing thermal expansion effects, minimizing frame deformation, and improving Bottom Dead Center (BDC) accuracy during continuous high-speed operation.
• FEA Optimized Gantry-Type Frame Structure: The gantry-type frame design is optimized through finite element analysis (FEA) to enhance structural rigidity, minimize stamping deflection, and provide superior stability compared with conventional C-frame presses.
• High-Rigidity Cast Iron Frame with Stress Relief Treatment: The high-strength cast iron frame undergoes annealing, rough machining, and vibration stress relief (VSR) processes to eliminate internal stress and ensure long-term precision performance.
• Centralized Crank Center Lubrication System: The centralized lubrication design eliminates moving oil pipes, reduces maintenance requirements, minimizes pipe breakage risks, and improves reliability during high-speed production.
• Precision Temperature Control System: Controlled oil cooling technology reduces thermal deformation of the press structure and maintains consistent stamping accuracy under different operating conditions.
• Advanced Dynamic Balancing System: Customized counter dynamic balancing technology compensates for upper die rebound forces, reduces vibration, and ensures stable high-speed operation.
• Gantry-Type High-Speed Precision Structure: The rigid gantry frame minimizes deformation during stamping processes, providing excellent accuracy and repeatability for high-volume motor core production.
• Hydraulic Slide Locking System: Hydraulic slide locking and releasing functions improve operational safety and simplify die adjustment procedures.
• Electric Die Height Adjustment: Equipped with position indicator system for convenient die setting, improved production efficiency, and consistent stamping quality.
• PLC Intelligent Control System: Microcomputer control interface or mobile console displays press angle, operating speed, error messages, and machine status information for efficient production monitoring.

Designed for High-Performance Motor Cores: The ultimate stator and rotor stamping solution for EV motor core manufacturing, electrical steel lamination production, and high-precision automated stamping lines.
