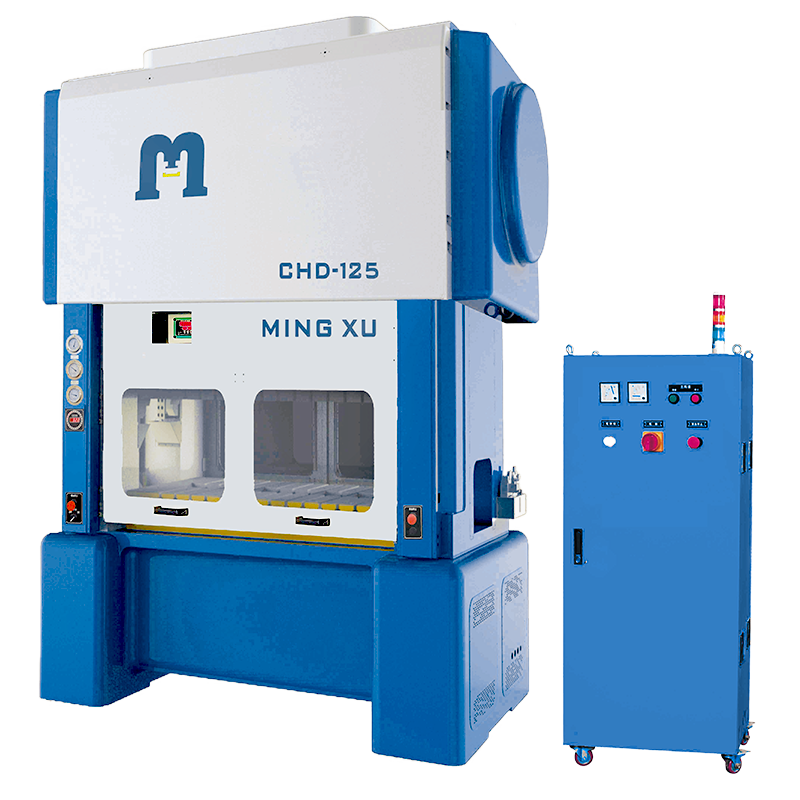

DOUBLE PLUNGER CHD-125

Availability: In stock

Model number: CHD-125

DOUBLE PLUNGER CHD-125
    Inquiry
    *Brochure available for download at the bottom
    Function Features
    • The oil cooler regulates oil temperature and maintains internal thermal balance, preventing unstable expansion caused by temperature fluctuations. This minimizes frame deformation and enhances BDC stability.
    • The frame structure is optimized through finite element analysis (FEA) for rationalized design.
    • High-strength cast iron frame undergoes annealing, rough machining and vibratory stress relief (VSR), thoroughly eliminating thermal stresses to ensure long-term precision.
    • Centralized crank center lubrication eliminates swinging oil pipes, reducing breakage risks.
    • Temperature-controlled oil cooling minimizes press thermal deformation.
    • Tailored counter dynamic balancing system ensures stability during high-speed operation by compensating for upper die rebound.
    • Gantry-type frame structure minimizes deflection during stamping compared to C-frame presses.
    • Hydraulic slide locking/releasing device ensures press operation safety and enables easy die adjustment.
    • Electric die height adjustment with position indicator enables easier operation.
    • The PLC interface microcomputer control system or mobile console displays press angle, speed, and error message.

    Press Dimension Drawing

    DOUBLE PLUNGER CHD-125

    Technical Parameters

    ProductCHD Gantry Double Crank Precision High-speed Press
    ModelCHD-125
    CapacityTon125
    Strokemm203040506080
    SpeedS.P.M200-550200-500200-450200-400200-350160-280
    Die-Heightmm405-455400-450395-445390-440385-435385-415
     Bolster Areamm1400*850*160
    Slide Areamm1400*600
    Slide Adjustmentmm50
    Bed Openingmm1200*200
    Window width (Left & Right)mm400
    Main MotorHP/kW40 / 30
    Gross Weight (approx.)kg26000
    Lubrication Automatic Lubrication
    Speed Control Inverter
    Clutch & Brake Air & Friction
    Auto Top Stop T.D.C
    Shock Absorber Mounting or pneumatic (option)
