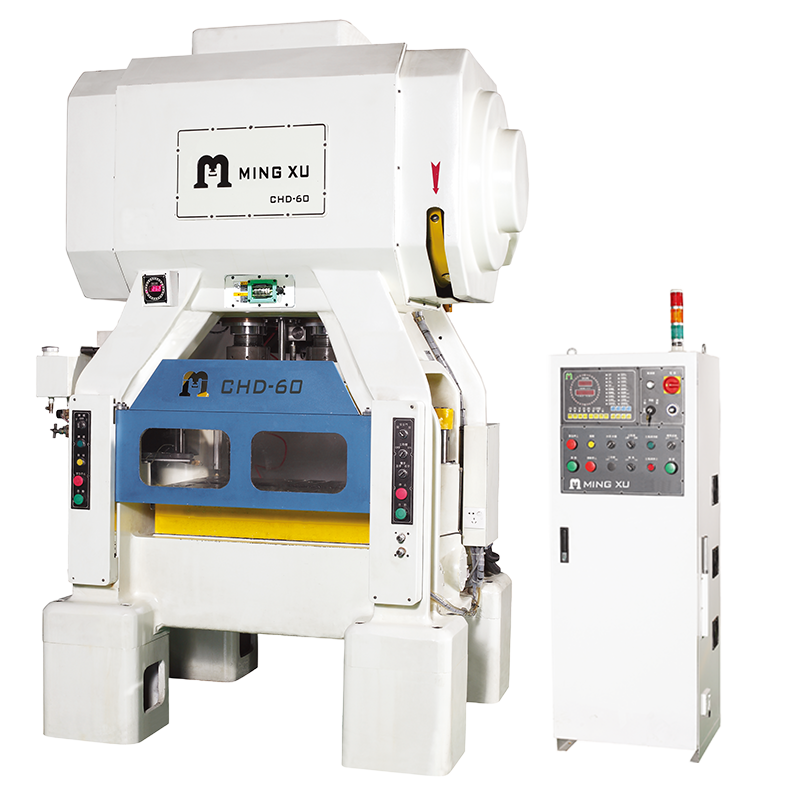

DOUBLE PLUNGER CHD-60

Availability: In stock

Model number: CHD-60

DOUBLE PLUNGER CHD-60

    Inquiry
    *Brochure available for download at the bottom
    Function Features
    • Integral high rigidity cast steel through internal stress relief to ensure long-term high precision.
    • Six-round guide pole apply with lubrication system to minimize the kinetic force of friction and heat deformation.
    • Apply high pressure oil on crankshaft centre to minimize the risk of pipe breakage.
    • Inverted dynamic balancing device to achieve high speed stability of equilibrium.
    • Electric die height adjustment equipped with digital die height indicator and hydraulic slide locking device to ensure product accuracy.
    • MCU control system display press angle, speed, error message and others information.

    Press Dimension Drawing

    DOUBLE PLUNGER

    Technical Parameters

    ProductCHD Gantry Double Crank Precision High-speed Press
    ModelCHD-60
    CapacityTon60
    Strokemm20304050
    SpeedS.P.M200-700200-600200-500200-400
    Die-Heightmm235-285230-280225-275220-270
    Bolster Areamm900*620*160
    Slide Areamm900*460
    Slide Adjustmentmm50
    Bed Openingmm(750)600*125
    Window width (Left & Right)mm340
    Main MotorHP/kW20 / 15
    Gross Weight (approx.)kg10500
    Lubrication Automatic Lubrication
    Speed Control Inverter
    Clutch & Brake Air & Friction
    Auto Top Stop T.D.C
    Shock Absorber Mounting or pneumatic (option)
